Q235B Q345b Structural Steel Wide Flange Beam Hot Rolled H Section Beam for Building

Short Description:

Product Description H section steel is a new type of economic construction steel. Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, save metals etc.. mainly used for large buildings that big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting...


Product Detail

Product Tags

Product Description

H section steel is a new type of economic construction steel. Economic and reasonable h-beam section shape, good mechanical performance, rolling section on each extension point is relatively uniform, small internal stress, compared with ordinary beams, with large section modulus, light weight, save metals etc.. mainly used for large buildings that big cutting ability, good cross section stability (such as factories, high-rise building, etc.), and Bridges, ships, lifting transportation machinery, equipment foundation, support, foundation pile, etc
.
Hot rolled structural steel H beam

Grade: Q235B, Q235, Q345B, SS400, A36
Standard: JIS/ ASTM/ GB/ BS/ ...
Length: 5.8m, 6m, 12m, or as the customers' requirements.
Q235B Q345b Structural Steel Wide Flange Beam Hot Rolled H Section Beam for Building
Q235B Q345b Structural Steel Wide Flange Beam Hot Rolled H Section Beam for BuildingQ235B Q345b Structural Steel Wide Flange Beam Hot Rolled H Section Beam for Building
Q235B Q345b Structural Steel Wide Flange Beam Hot Rolled H Section Beam for Building

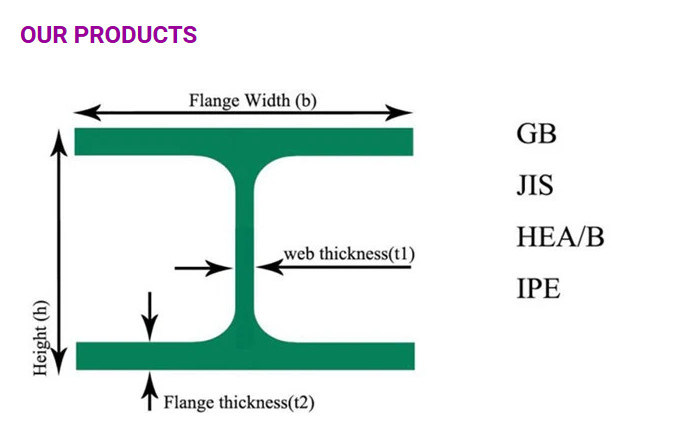

H beam Section size (mm)

Weight (kg/m)

Height×Breadth

Web thickness

Flange thickness

             100×100

6

8

16.9

125×125

6.5

9

23.6

150×150

7

10

31.1

175×175

7.5

11

40.4

200×200

8

12

49.9

250×250

9

14

71.8

300×300

10

15

93.0

300×300

15

15

105.0

350×350

12

19

134.9

400×400

13

21

171.7

148×100

6

9

20.7

194×150

6

9

29.9

244×175

7

11

43.6

294×200

8

12

55.8

340×250

9

14

78.1

390×300

10

16

104.6

440×300

11

18

120.8

482×300

11

15

110.8

488×300

11

18

124.9

582×300

12

17

132.8

588×300

12

20

147.0

100×50

5

7

9.3

125×60

6

8

13.1

150×75

5

7

14.0

175×90

5

8

18.0

198×99

4.5

7

17.8

200×100

5.5

8

20.9

248×124

5

8

25.1

250×125

6

9

29.0

298×149

5.5

8

32.0

300×150

6.5

9

36.7

346×174

6

9

41.2

350×175

7

11

49.4

396×199

7

11

56.1

400×200

8

13

65.4

446×199

8

12

65.1

450×200

9

14

74.9

496×199

9

14

77.9

500×200

10

16

88.1

596×199

10

15

92.4

600×200

11

17

103.4

700×300

13

24

181.8

800×300

14

26

206.8

900×300

16

28

240.1

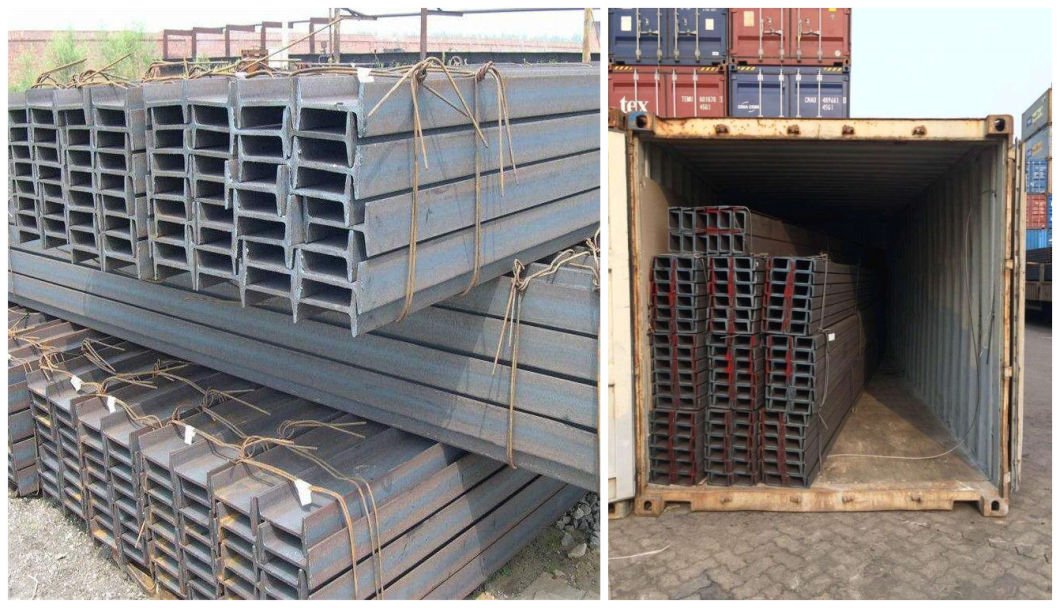

Packaging & Delivery:

Packaging details 1.Big order: in bulk
2.Small order: packed by steel strips
3.woven cloth with 7 slats
4.according to the requirements of customers
5. 20ft container can load 25 tons,5.8m Max 40ft container can load 26 tons,12M Max
Delivery 3-15 working days after received the deposit or L/C.

Company Information

Tangshan yuxuan international trading co., ltd is a large scale enterprise mainly focusing on the producing. domestic distribution and export of steel products. established in 2014, yuxuan steel covers a land area of 60,000 square meters with registered capital 5 million dollars. with the great surport from customers in china and abroad, our business scope becomes wider and greater, and accomplished excellent achievements in and accomplished excellent achievements in steel trading since established.

The main products of our company include: structural steel, wire rod, pipes, hr coils/plates, deformed steel bars, square bars and galvanized products. our company's structural steel products are unique competitive. there are jis standard, astm standard and en standard for angle bar, u-channel, h-beam, i-beam, and flat bars. meanwhile, we are widely develop factory of wire rod, deformed steel bar and square bar which make yuxuan open up international market and bring about extraordinary dvelopment in export business.

We are firmly conviced that we will have a much more promising future together!
