Sy295 Material Customized Larsen Steel Sheet Pile 700mm X 225mm

Short Description:

  GB U type steel sheet piles Size Per piece Specification Width(mm) High(mm) Thick(mm) Section area(cm2) Weight(kg/m) 400 x 85 400 85 8.0 45.21 35.5 400 x 100 400 100 10.5 61.18 48.0 400 x 125 400 125 13.0 76.42 60.0 400 x 150 400 150 13.1 74.40 58.4 400 x 170 400 170 15.5 96.99 76.1 600 x 130 600 130 10.3 78.7 61.8 600 x 180 600 180 13.4 103.9 81.6 600 x 210 600 210 18.0 135.3 106.2 750 x 205 750 204 10.0...


Product Detail

Product Tags

  GB U type steel sheet piles

Size Per piece
Specification Width
(mm)
High
(mm)
Thick
(mm)
Section area
(cm2)
Weight
(kg/m)
400 x 85 400 85 8.0 45.21 35.5
400 x 100 400 100 10.5 61.18 48.0
400 x 125 400 125 13.0 76.42 60.0
400 x 150 400 150 13.1 74.40 58.4
400 x 170 400 170 15.5 96.99 76.1
600 x 130 600 130 10.3 78.7 61.8
600 x 180 600 180 13.4 103.9 81.6
600 x 210 600 210 18.0 135.3 106.2
750 x 205 750 204 10.0 99.2 77.9
750 205.5 11.5 109.9 86.3
750 206 12.0 113.4 89.0

Z type steel sheet piles:

Specification  Width
(mm)
High
(mm)
Thick t
(mm)
Thick s
(mm)
Weight
(kg/m)
SPZ12 700 314 8.5 8.5 67.7
SPZ13 700 315 9.5 9.5 74
SPZ14 700 316 10.5 10.5 80.3
SPZ17 700 420 8.5 8.5 73.1
SPZ18 700 418 9.10 9.10 76.9
SPZ19 700 421 9.5 9.5 80.0
SPZ20 700 421 10.0 10.0 83.5
SPZ24 700 459 11.2 11.2 95.7
SPZ26 700 459 12.3 12.3 103.3
SPZ28 700 461 13.2 13.2 110.0
SPZ36 700 499 15.0 11.2 118.6
SPZ38 700 500 16.0 12.2 126.4
SPZ25 630 426 12.0 11.2 91.5
SPZ48 580 481 19.1 15.1 140.2

Products Show

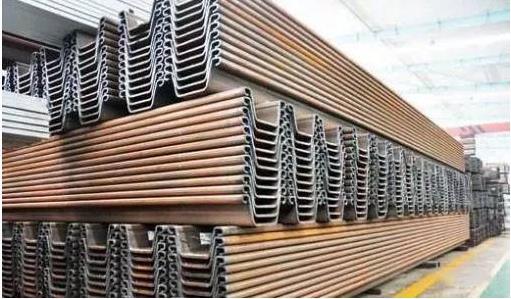

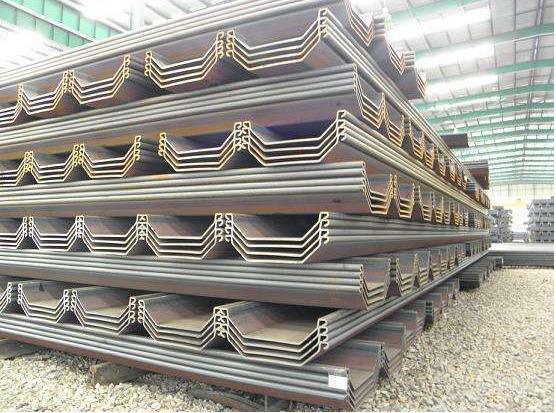

Sy295 Material Customized Larsen Steel Sheet Pile 700mm X 225mm
Sy295 Material Customized Larsen Steel Sheet Pile 700mm X 225mm
Sy295 Material Customized Larsen Steel Sheet Pile 700mm X 225mm
